UL-999

產品描述:

在線咨詢

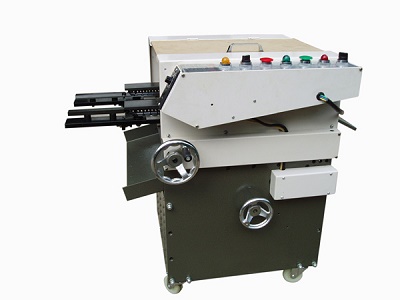

全自動PC板切腳機
Automatic P.C Board Cutting Machine
特 點:
1.鋼架底座,穩定堅固,防噪音,防振動,加長機使用壽命.
2.全自動鏈爪推送PC板,切割點平穩整齊,增加鎢鋼刀片的使用壽命.
3.PC板寬度從20mm到280mm均可使用.
4.刀片轉軸特殊處理,再經精密加工研磨,高速旋轉時,不產生跳動及噪音,使刀片切削時壽命更長,更鋒利.
5.入切刀前裝有針球往上頂平,及電木板刀往下壓制,可矯正PC板因焊錫過后所產生的凹凸變形

Features:
1.Steel Frame base is very stable, strong enough, to resist noise and to resist vibration.
2.Fully automatic push P.C board, the cutting point is stable, orderly, to enable tungsten steel cutting disc with longer life.
3.It is available for range of P.C board width from 20mm to 280mm.
4.The cutter rotating shaft is made from precise machining; it will not happen shake and noise during high speed running.
5.The machine is equipped with bare ball and backlit blade, to revise concave, convex status of P.C board after it passed soldering.



規格:

Type

Specify

UL-999

電源

Power Source

AC110V/60HZ or AC220V/50HZ

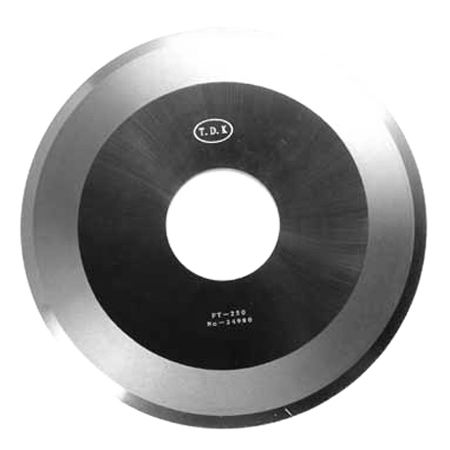

使用刀片尺寸

Cutter Size

3.5t x 70 x 200   250

刀片轉速R.P.M.

4700rpm

PC板最大寬度

P.C.B max. width

250

PC板最低腳長

PC/min. lead height

0.8mm

機械尺寸Dimensions

L850 x W550 x H760 m/m

重量Weight

90kgs
